Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
This series of 5 ton Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart rail coiled car is towed power supply, of course, you can choose the power supply mode, such as: rail power supply, battery power supply, etc.and the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.
Advantage and functions of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
1. All the Electric Coil Rail Transfer Car can be customized according to your requirements.
2. The Electric Coil Rail Transfer Car can add the the V or U shape to ensure the the aluminum coils do not fall off during handling.
3.The hydraulic device can be added to the Electric Coil Rail Transfer Car according to your working condition.
4.The Electric Coil Rail Transfer Car can be used in port transport, car field, steel, iron, heavy industry, light industry,etc.
5.The V shape supporting of the Electric Coil Rail Transfer Car can be designed according to coil diameter,and roller distance can be adjusted as per coil dia.
6.The V or U shape of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart can be remove freely.
7.The Electric Coil Rail Transfer Car can be applied in all kinds of occasion even severe working environment.
8.The person stop device is installed inside of the Electric Coil Rail Transfer Car.
9.The Electric Coil Rail Transfer Car body platform equipped waterproof material.
Main Componences of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
Technical Table of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| | Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| | Heigth(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
The scheme of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
Application and Usage of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
The Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart can be used in port transport, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, nuclear energy, hydraulic engineering, etc.and for material transportation,can be used in coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet,high temperature, easy explosion, ponding, dust, scrap iron...

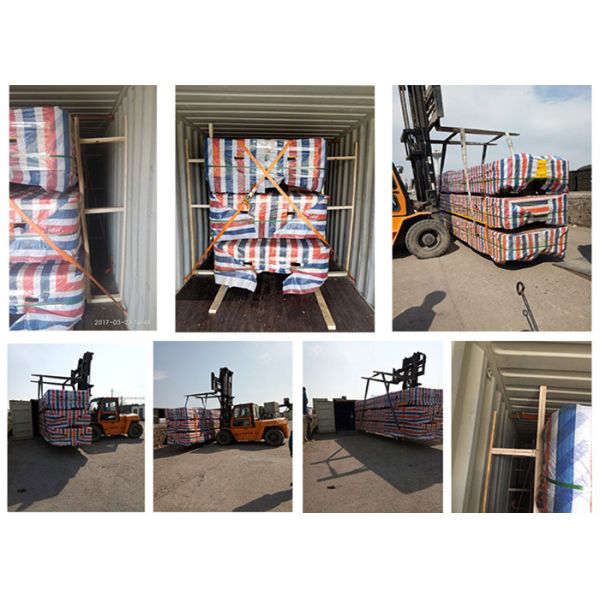

Packaging & Shipping of the Electric Coil Rail Transfer Car for Industrial use Aluminum Motorized Coil Transfer Cart
